Chat Server Integration

This guide demonstrates how to integrate Group Genie into a chat server to enable multi-party reasoning and agent responses in group chat environments. We'll use the group-terminal chat server as a reference implementation, but the patterns apply to any chat server architecture.

Note

This integration guide assumes you are familiar with the Group Genie tutorial.

Overview

Integrating Group Genie into a chat server involves connecting two key components:

1. Chat Server: Receives messages from users and broadcasts responses back to connected clients
2. Group Session: Processes messages through group reasoning and agent execution and publishes responses to the group.

Key Integration Points

A chat server usually provides two integration points. The following are specific to the group-terminal chat server:

1. Message Handler: A callback that receives incoming messages from chat clients

   • Signature: async def handler(content: str, sender: str)
   • Called sequentially in message arrival order
   • Must be non-blocking to avoid delaying subsequent messages

2. Send Message: A method to broadcast responses back to chat clients

   • Signature: async def send_message(content: str, sender: str)
   • Called from message processing tasks to deliver agent responses

Implementation Pattern

Message Ingestion

from asyncio import create_task
from group_terminal.server import ChatServer
from group_genie.session import GroupSession
from group_genie.message import Message

class App:
    def __init__(
        self,
        group_reasoner_factory,
        agent_factory,
        session_id,
        host="0.0.0.0",
        port=8723,
    ):
        # Initialize Group Session
        self._session = GroupSession(
            id=session_id,
            group_reasoner_factory=group_reasoner_factory,
            agent_factory=agent_factory,
            data_store=data_store,
        )

        # Initialize chat server and register message handler
        self._server = ChatServer(host=host, port=port)
        self._server.add_handler(self._handle_message)

    async def _handle_message(self, content: str, sender: str):
        # Create Group Genie message from chat message
        message = Message(content=content, sender=sender)

        # Add message to session in arrival order
        # handle() must be called sequentially
        # to maintain consistent message ordering
        execution = self._session.handle(message)

        # Process messages asynchronously to avoid blocking
        # the message handler from receiving subsequent messages
        create_task(self._complete_execution(execution))

Message ingestion includes:

• session.handle(message) is called synchronously in the message handler, ensuring messages are added to the session in arrival order
• create_task() runs the message processing coroutine asynchronously, allowing the message handler to return immediately and receive the next message
• This design maintains ordering guarantees while preventing long-running agent executions from blocking the message queue

Message Processing

The _complete_execution() message processing coroutine processes three types of elements from an Execution stream:

from group_genie.session import Execution
from group_genie.agent import Approval, Decision
from group_genie.message import Message

async def _complete_execution(self, execution: Execution):
    async for elem in execution.stream():
        match elem:
            case Decision() as decision:
                # Group reasoner decided to IGNORE or DELEGATE
                logger.debug(f"Reasoner decision: {decision.value}")

            case Approval() as approval:
                # Agent requests tool call approval
                logger.debug(f"Auto-approve {approval}")
                elem.approve()

            case Message() as message:
                # Agent generated a response message
                logger.debug(f"Agent response: {message.content}")
                await self._server.send_message(
                    message.content,
                    sender=message.sender
                )

• Decision: Logs the group reasoner's decision (IGNORE or DELEGATE). If IGNORE, the stream completes with no further elements.
• Approval: Handles tool call approval requests. In this example, all tool calls are auto-approved. Production systems might implement manual approval workflows.
• Message: Send agent responses back to chat clients via the server's send_message method.

Complete Example

The complete example is available at examples/guide/chat.py.

Running the Example

Start the chat server with the fact-checking template:

python examples/guide/chat.py --template-name fact_check

In separate terminals, launch three clients:

python -m group_terminal.client --username user1
python -m group_terminal.client --username user2
python -m group_terminal.client --username user3

Example Conversation

The screenshots below show the fact-checking scenario from the tutorial, but running in a group chat environment. The same three users (user1, user2, user3) participate in the conversation:

user1's view:

user2's view:

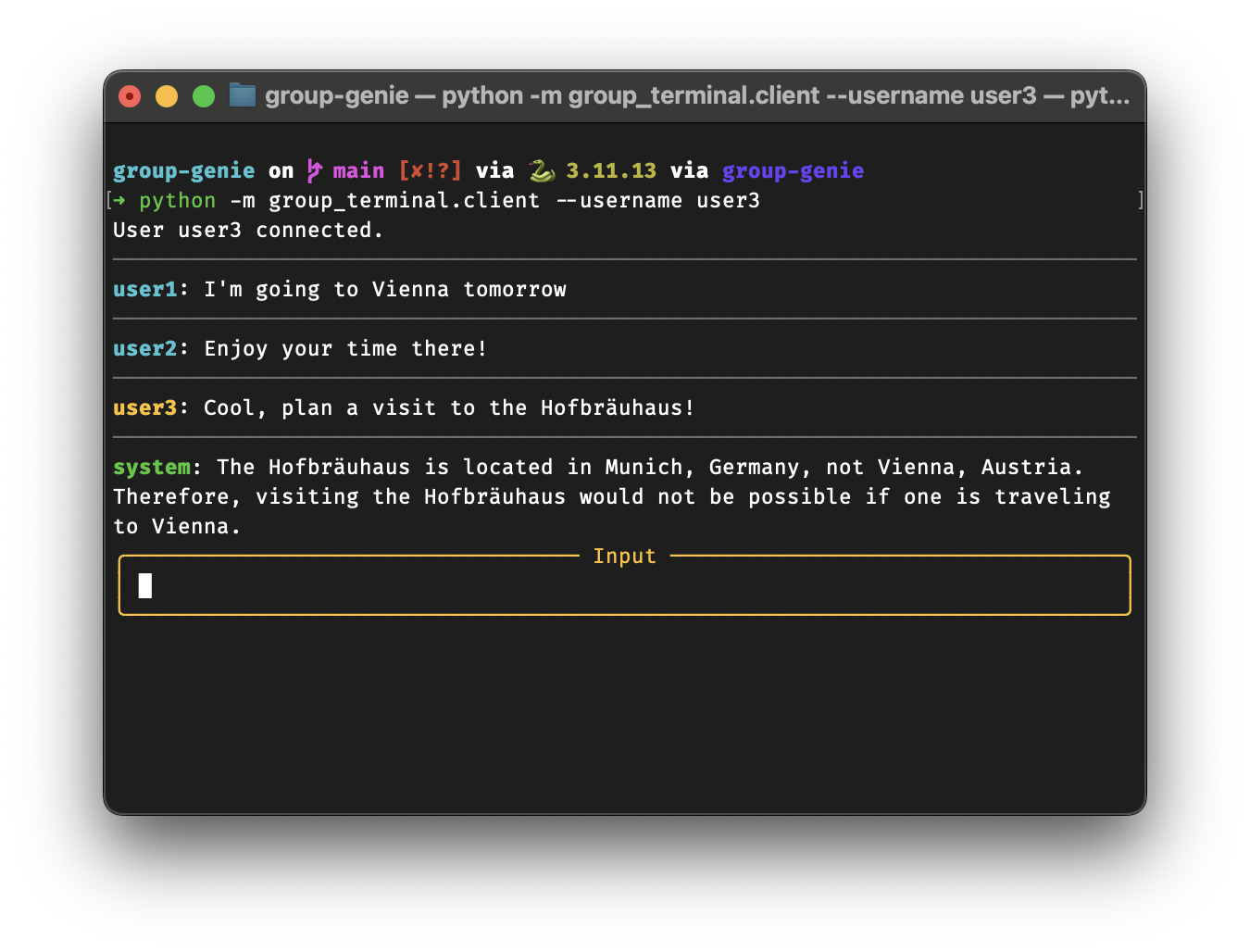

user3's view:

The group reasoner detects the factual inconsistency (Hofbräuhaus is in Munich, not Vienna) and delegates to the system agent to resolve it.
